Features and benefits of Snap Frames.

snap frame is one of the simplest ways of displaying posters and signs. The front hinges snaps open making it easier to change posters. No tools are necessary and clip frame does not need to be removed from the wall. Posters will stay in excellent condition thanks to the PVC protective cover. The screw holes are hidden when the front cover is closed. Poster frames can be hung portrait or landscape.

They are suitable for the home to showcase your favourite poster, evacuation diagrams in public areas such as hospitals, community centres, movie theatres and shopping centres.

How do I update my graphics?

The snap frame is single sided; it can be clipped open from all four sides. Once clips are open remove the PVC cover and insert the required poster.

How wide is the snap frame?

The frame profile is 32mm wide and this creates a 10mm overlap of your poster on each side. The frame stands out approximately 10mm from the wall.

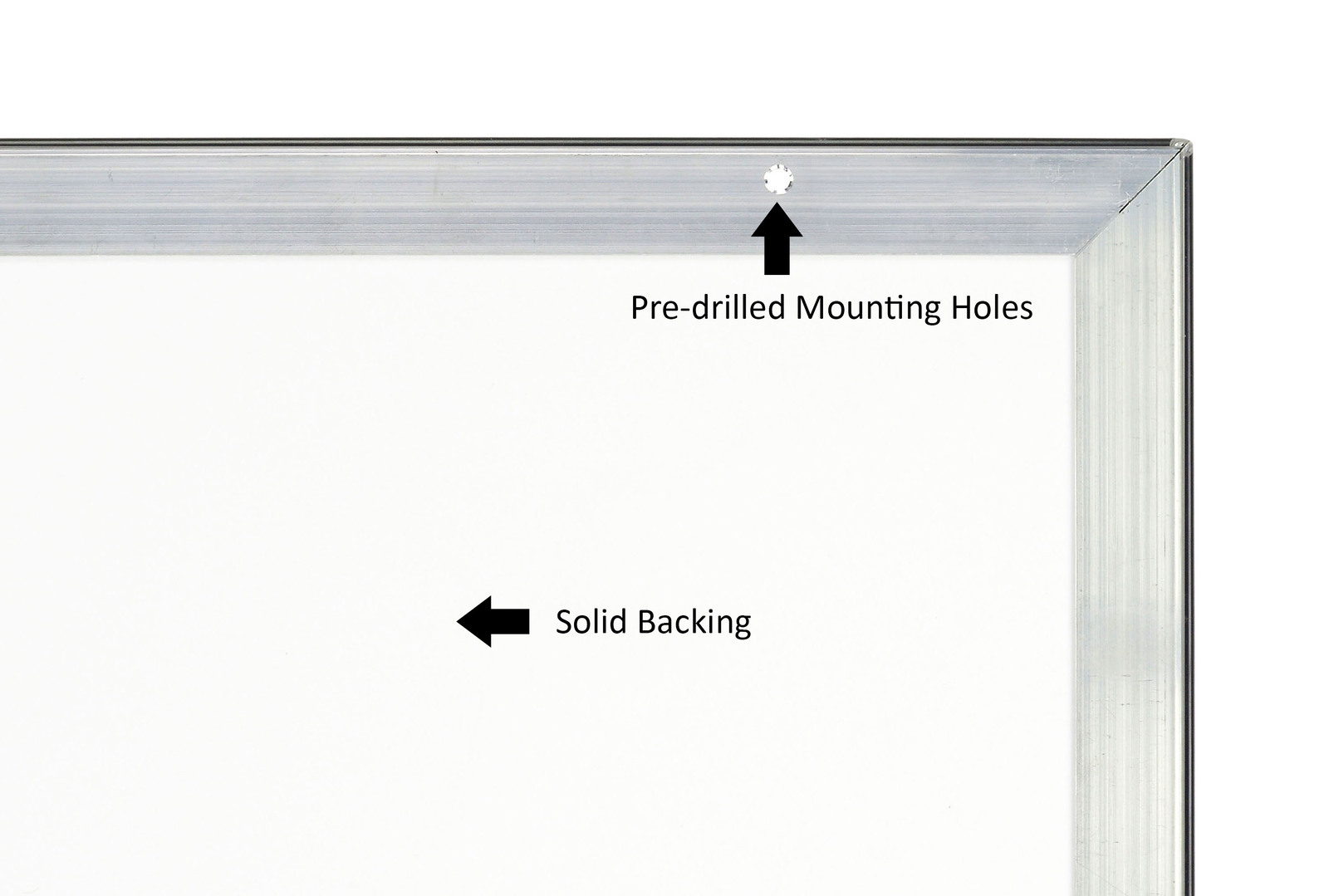

How is the frame mounted?

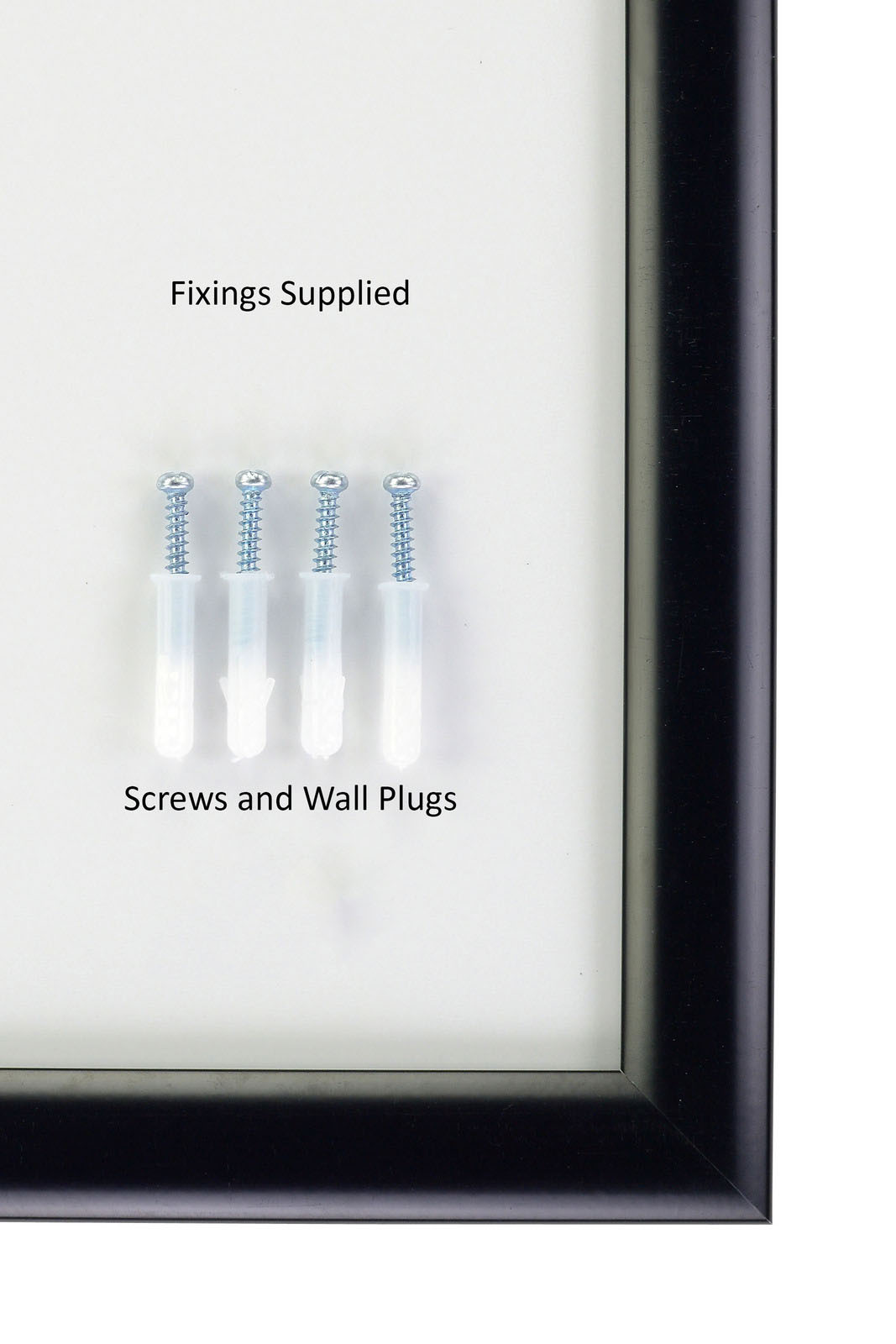

The aluminium Snap Frame comes with pre-drilled holes and with wall fixings and screws ready for mounting. You can also use double sided tape to mount the snap frame to a wall.

What is the frame made of?

The frame is made from aluminium with a white non transparent backing and protected by anti-glare PVC cover.

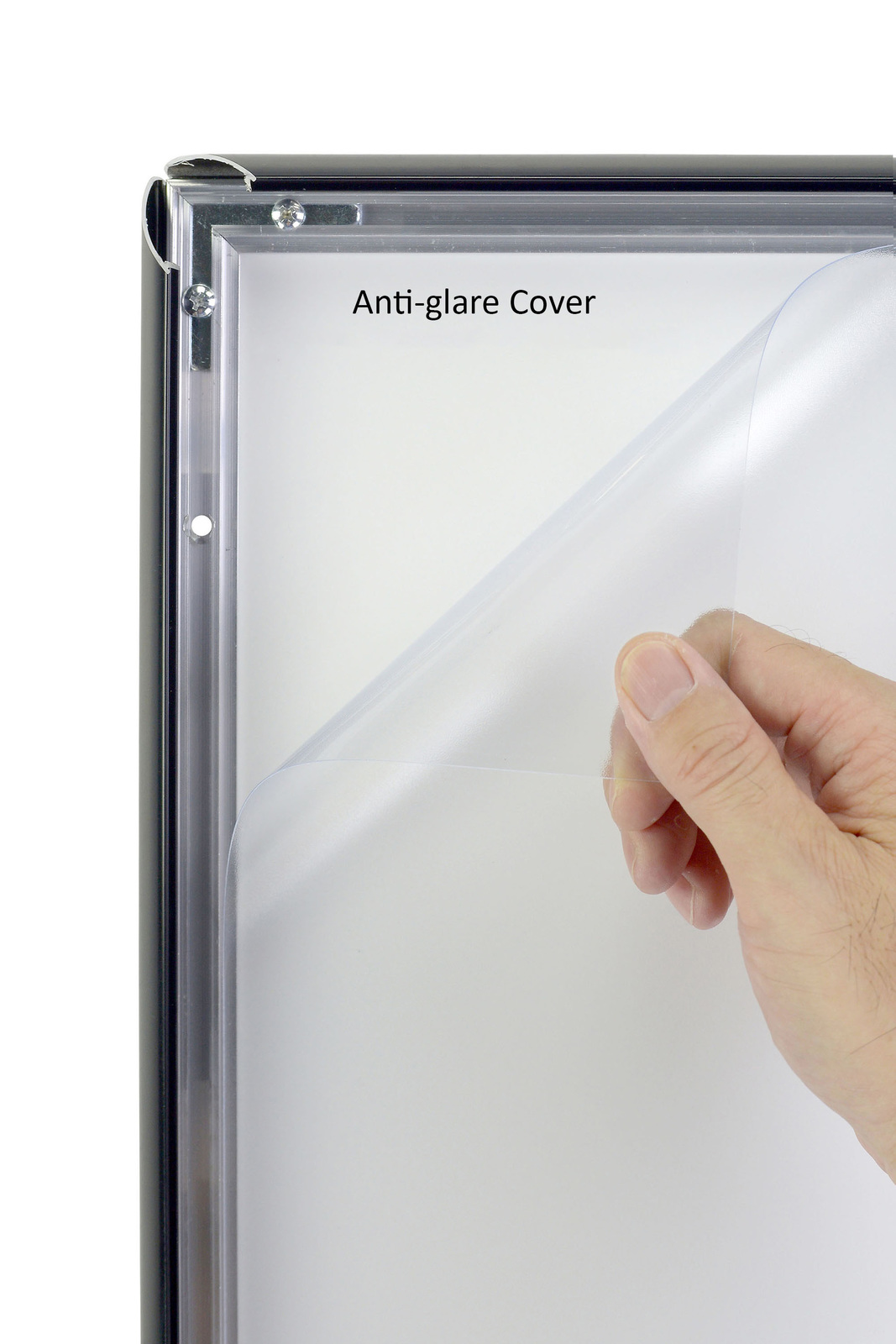

What about the cover?

The frame comes with an Anti-glare PVC cover. Anti-glare covers and mostly used internally to prevent the glare on the poster. The thickness of all the covers is 0.4mm

Can I use this frame outdoors?

Yes, however you should print on waterproof paper. If you are going to use the snap frame outdoors a outdoor Polycarbonate cover must also be purchased as the anti-glare cover that comes with the frame may turn yellow or shrink in UV Light.

What thickness paper can I use?

The frame can hold a poster with a maximum thickness of 1mm.

Dimensions

Paper Size mm

Frame Size mm

Visual Size mm

A0 – 841 x 1189

871 x 1219

821 x 1169

A1 – 594 x 841

624 x 871

574 x 821

A2 – 420 x 594

450 x 624

400 x 574

A3 – 297 x 420

327 x 450

277 x 400

A4 – 210 x 297

240 x 327

190 x 277

A5 – 148 x 210

178 x 240

128 x 190

US/Specialty Sizes

Paper Size mm

Frame Size mm

Visual Size mm

Half A1 -

297 x 841

327 x 871

277 x 821

210 x 210

240 x 240

190 x 190

500 x 750

530 x 780

480 x 720

700 x 1000

730 x 1030

680 x 980

700 x 1600

730 x 1630

680 x 1580

8 x 11 Inch -

203.2 x 279.4mm

233.2 x 309.4

183.2 x 259.4

8.5 x 11 Inch -

215.9 x 279.4mm

245.9 x 309.4

195.9 x 259.4

11 x 17 Inch -

279 x 432mm

309.4 x 462

289.4 x 412

18 x 24 Inch -

457 x 610mm

487 x 640

437 x 590

20 x 30 Inch -

508 x 762mm

538 x 792

488 x 742

22 x 28 Inch -

558.8 x 711.2mm

588.8 x 741.2

538.8 x 691.2

24 x 36 Inch -

610 x 914mm

640 x 944

590 x 894

27 x 39 Inch -

685.8 x 990.6mm

715.8 x 1020

665.8 x 970.6

27 x 40 Inch -

685.8 x 1016mm

715.8 x 1046

665.8 x 996

27 x 41 Inch -

685.8 x 1041.4mm

685.8 x 1071.4

665.8 x 1051.4

30 x 40 Inch -

762 x 1016mm

792 x 1046

772 x 1026

36 x 48 Inch -

914 x 1219mm

944 x 1249

924 x 1229



*Visual Area is the amount of graphic shown
